Auxbeam 8 Gang Switch Panel BB80, Universal Circuit Control Relay System Box with Automatic Dimmable On-Off LED Switch Pod Touch Switch Box for Car Pickup Truck Boat ATV UTV, Blue 2 Years Warranty

Auxbeam 8 Gang Switch Panel BB80, Universal Circuit Control Relay System Box with Automatic Dimmable On-Off LED Switch Pod Touch Switch Box for Car Pickup Truck Boat ATV UTV, Blue 2 Years Warranty

$254.99 USD
$254.99 USD
Sale Sold out
Shipping calculated at checkout.

Overview

  • Operation Mode : ON-OFF-ON
  • Current Rating : 60 Amps
  • Operating Voltage : 24 Volts (DC)
  • Contact Type : Normally Closed
  • Connector Type : Plug In
  • Brand : Auxbeam
  • Terminal : Screw

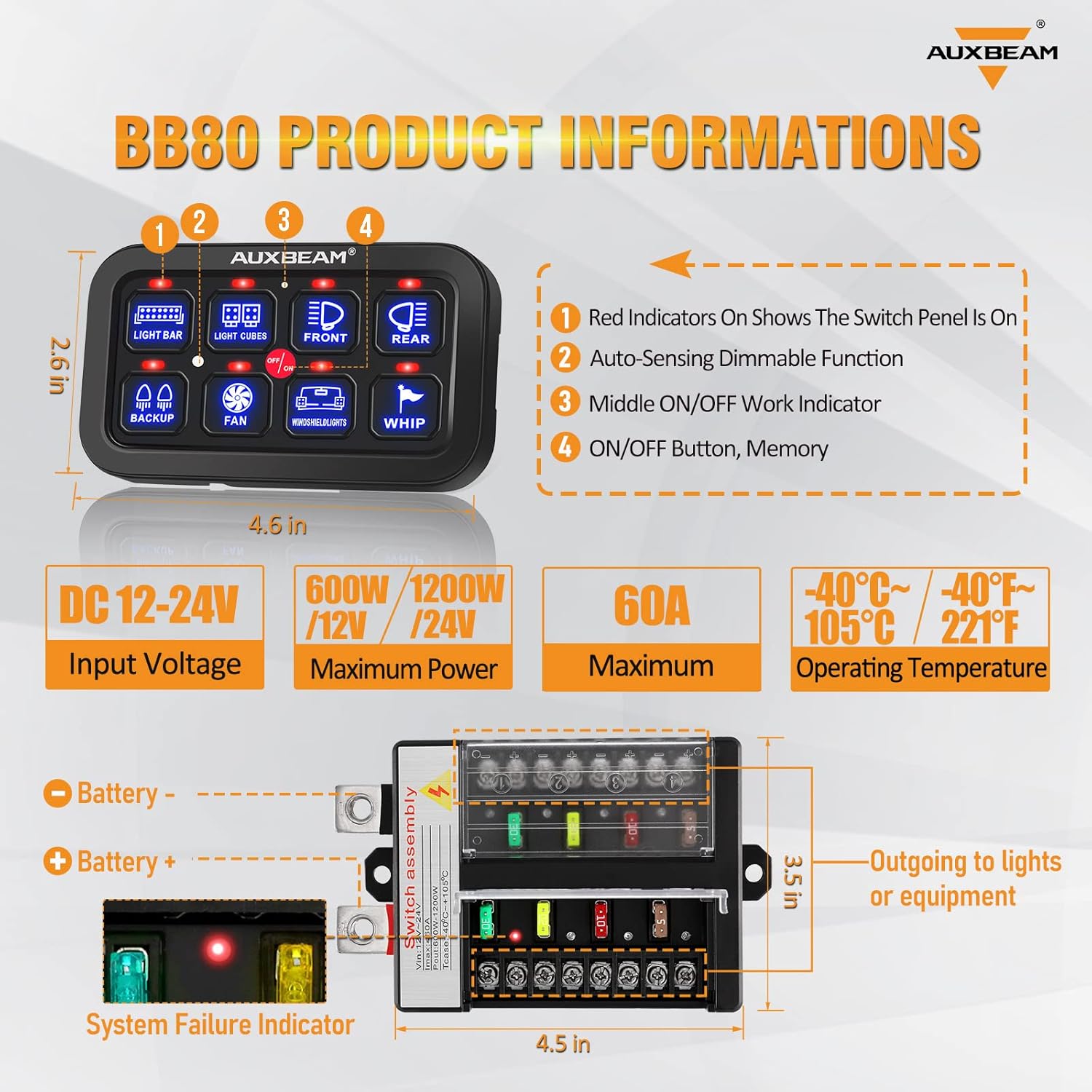

  • Item dimensions L x W x H : 4.6 x 2.6 x 0.6 inches
  • Circuit Type : 8-way
  • Actuator Type : Push Button
  • Switch Type Push Button : Material Aluminum, Metal, Plastic
  • : Switch Type Push Button
  • : Material Aluminum, Metal, Plastic
  • Mounting Type Panel Mount : Specification Met Ip65
  • : Mounting Type Panel Mount
  • : Specification Met Ip65

About this item

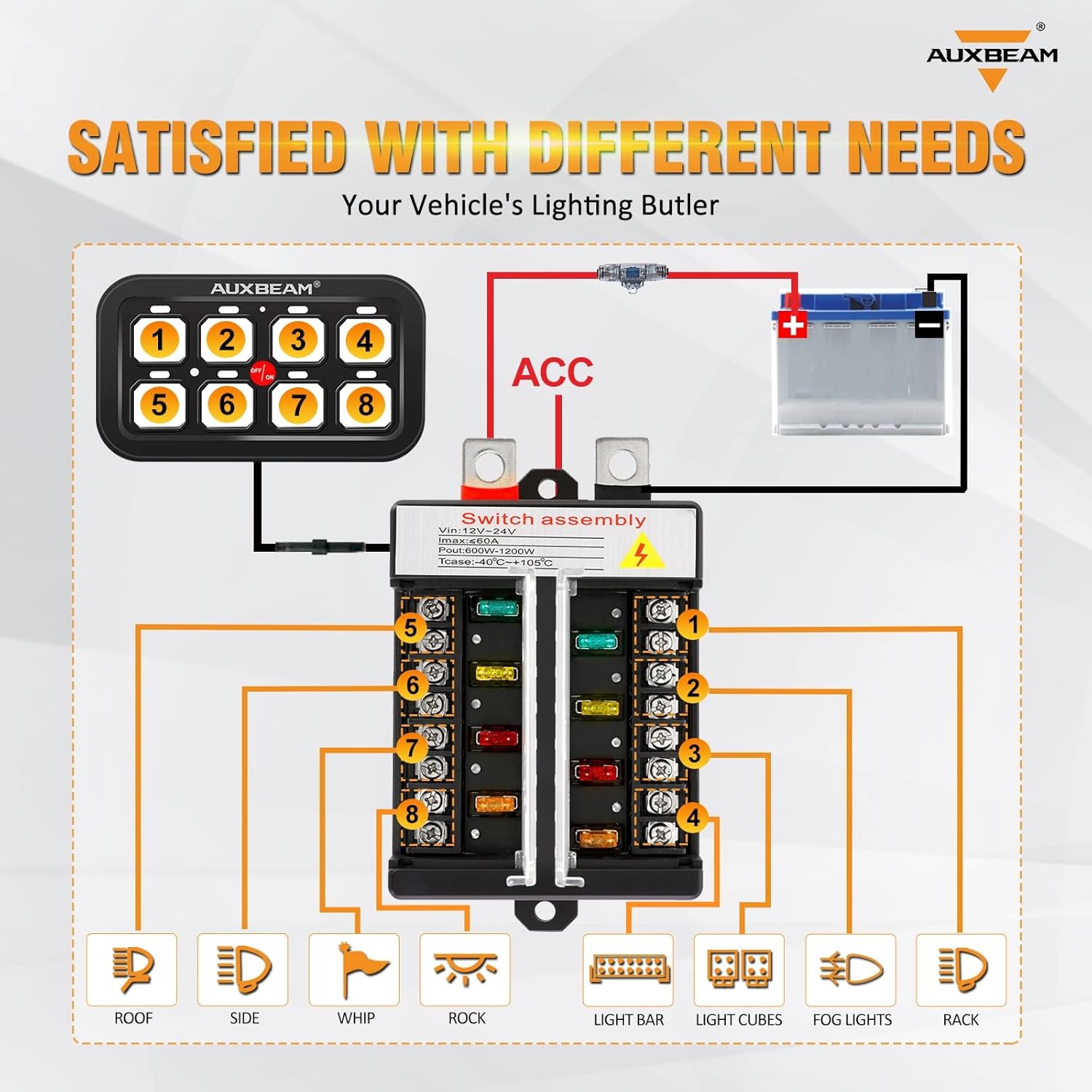

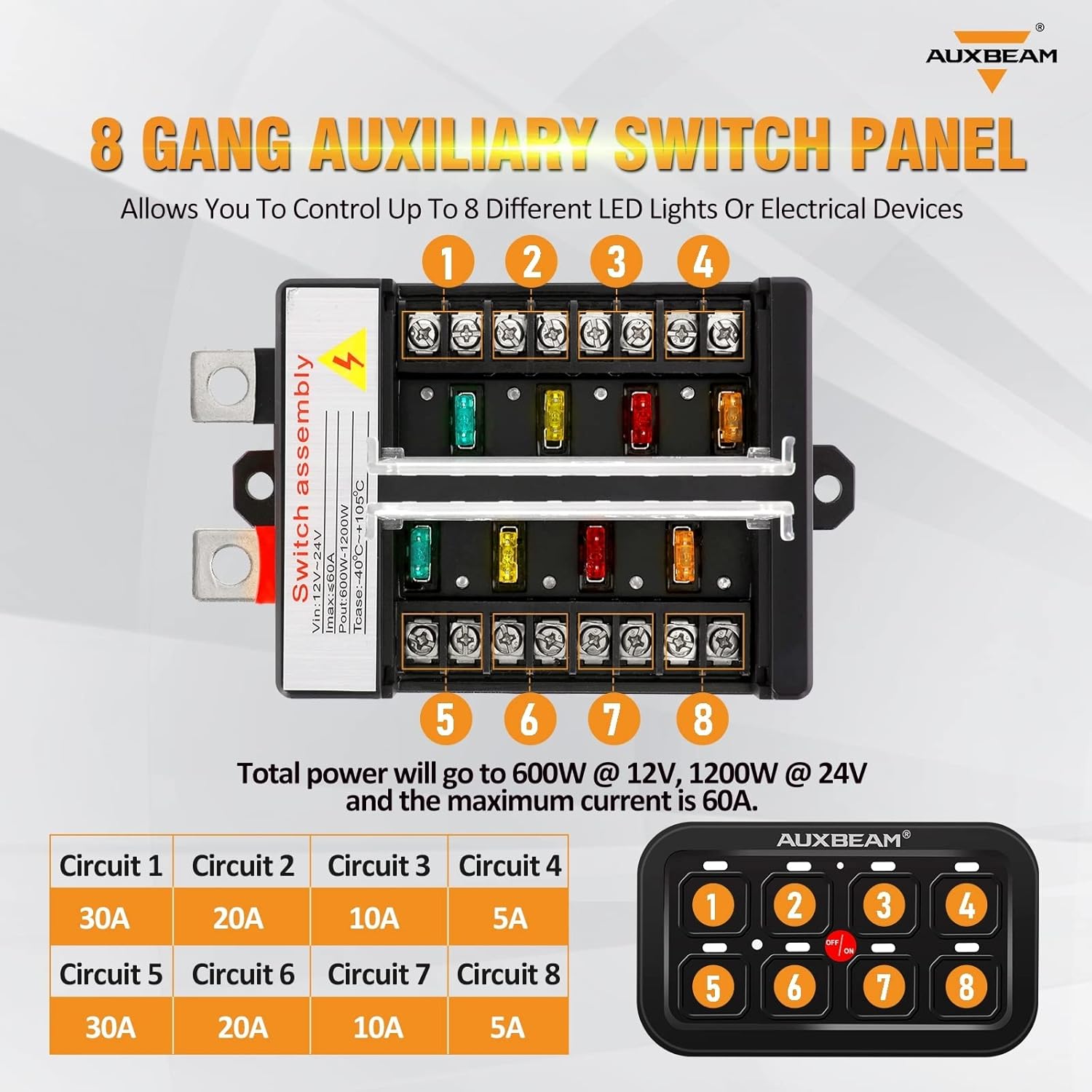

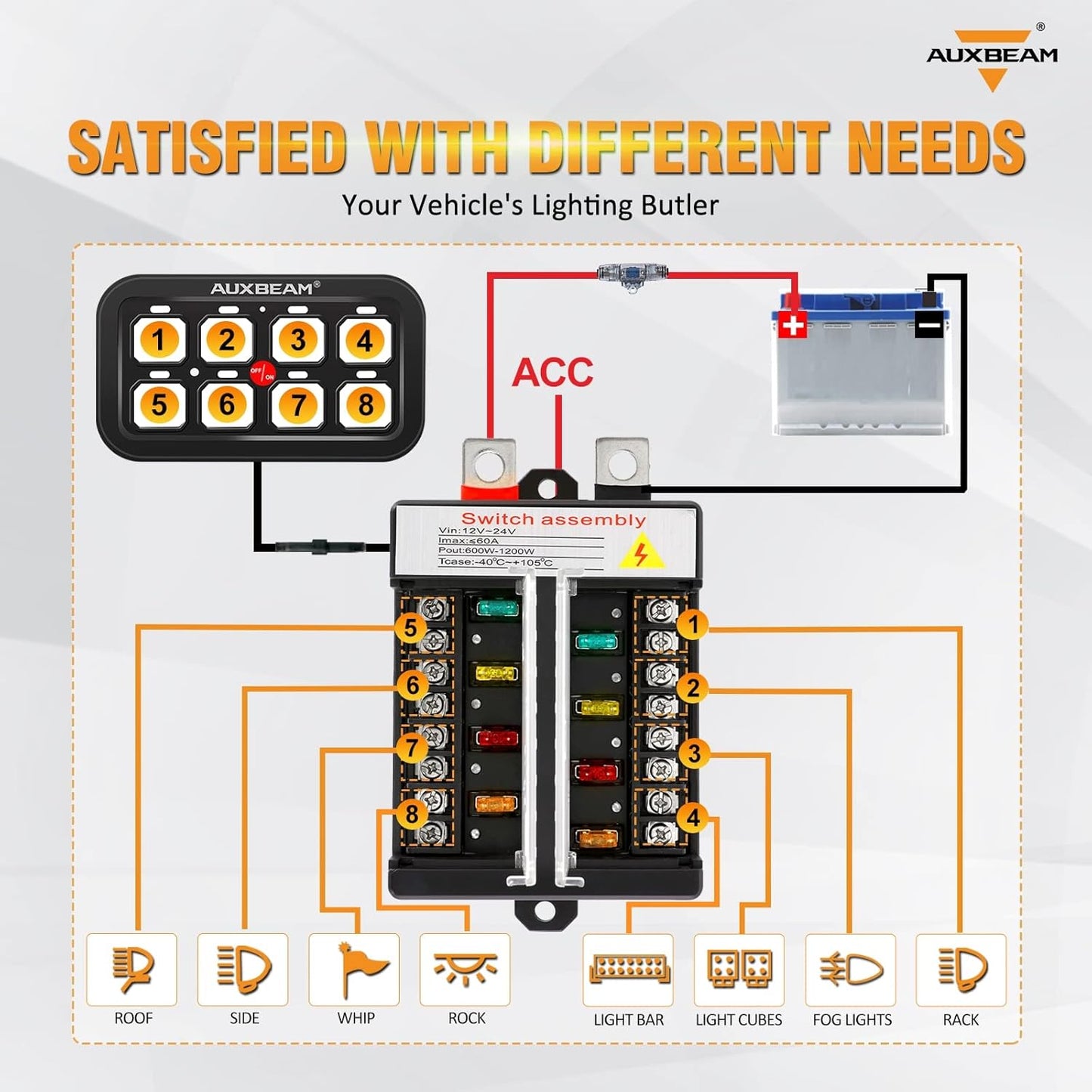

  • AUXBEAM 8 GANG SWITCH PANEL: Offers a perfect solution to organize wiring harnesses and add a single panel to control everything. This switch pod with 8 circuits can power all types of 12V/24V accessories, Max power rating: 1200W. Max current rating: 60A, Operating temperature: -40°F to 221°F
  • AUTOMATIC DIMMABLE SYSTEM: Auxbeam switch panel BB80 includes an automatic dimming feature that adjusts brightness based on ambient light. It dims in dark environments to reduce glare and brightens in well-lit areas for better visibility, enhancing your off-road and night driving experience

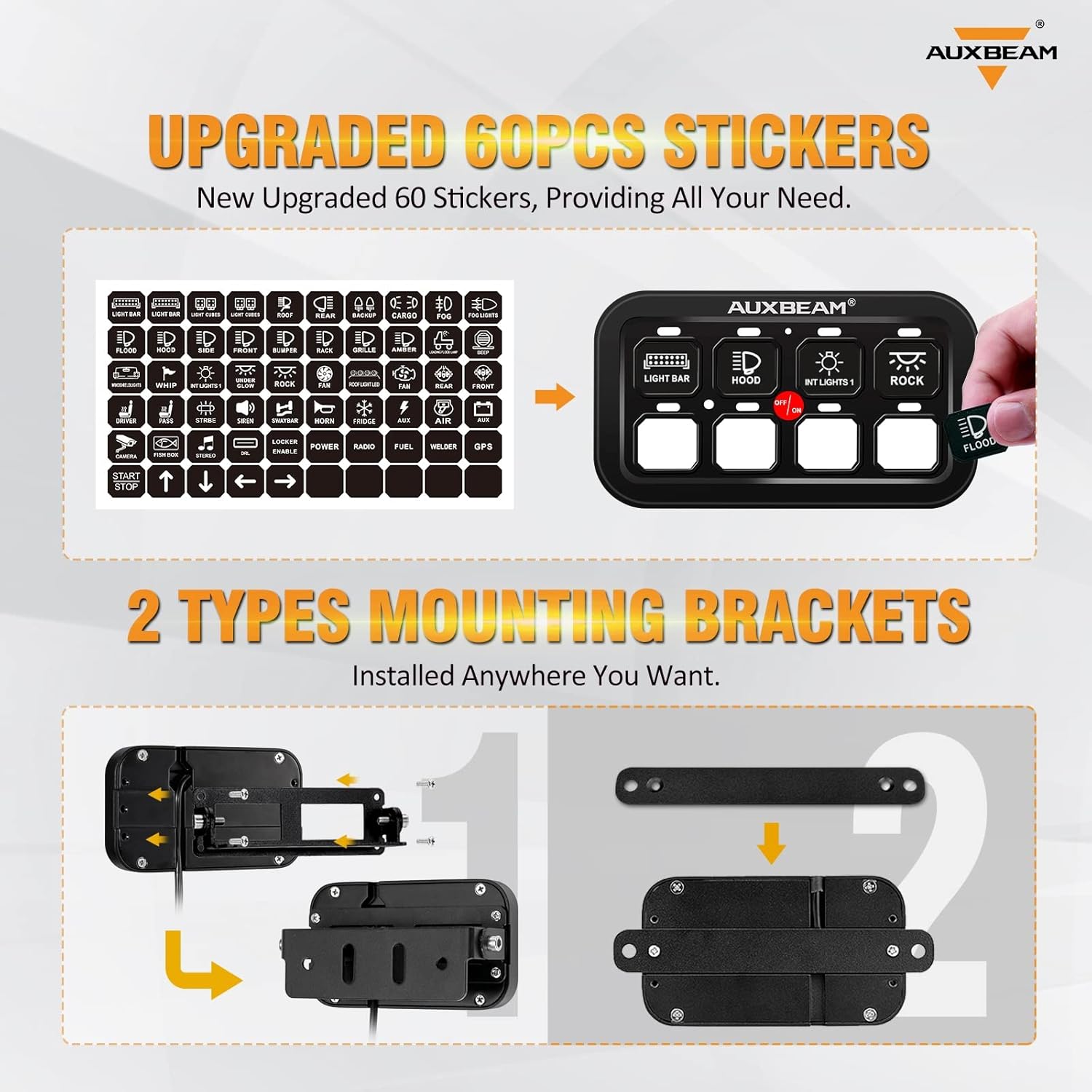

  • EASY INSTALLATION & SAFETY DESIGN: This compact control box keeps wires organized and protected. It comes with a plug-and-play wiring harness, fuse, relay, and temperature protection switch. Choose between two mounting options: a bracket or double-sided tape, allowing for easy installation without cutting large holes
  • WIDE APPLICATIONS: Designed for any vehicle, this aux beam 8 gang switch panel provides professional control for electronic devices. It's suitable for trucks, pickups, UTVs, RVs, cars, and boats

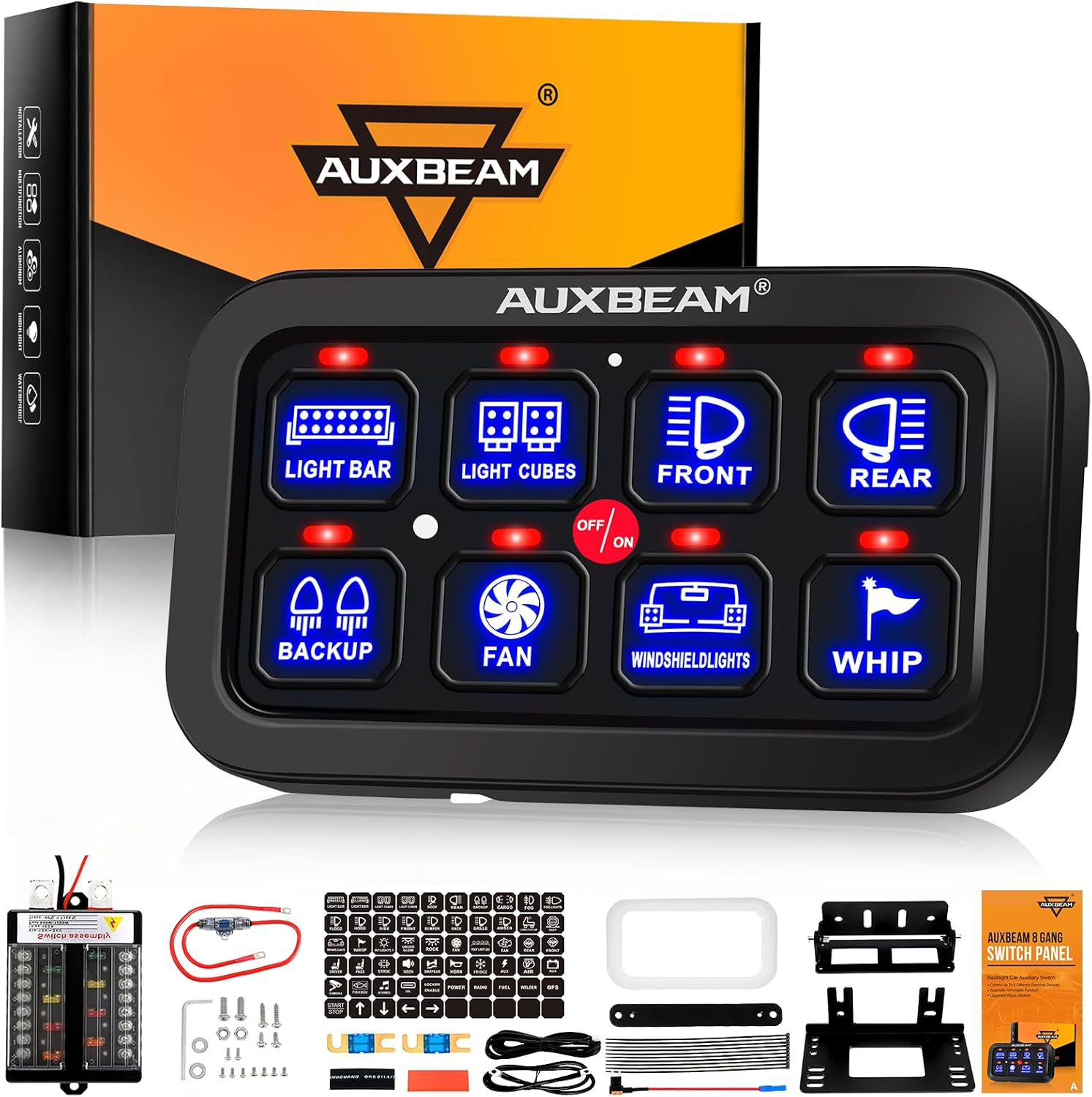

  • PACKAGE INCLUDE: The package includes 1 switch control box, 1 switch panel, 2 mounting brackets, 1 switch panel cover, 1 wiring harness, 60 DIY stickers, and an installation manual. For any issues, please contact us for excellent after-sales support. The product comes with a 2-year protection from AUXBEAM
